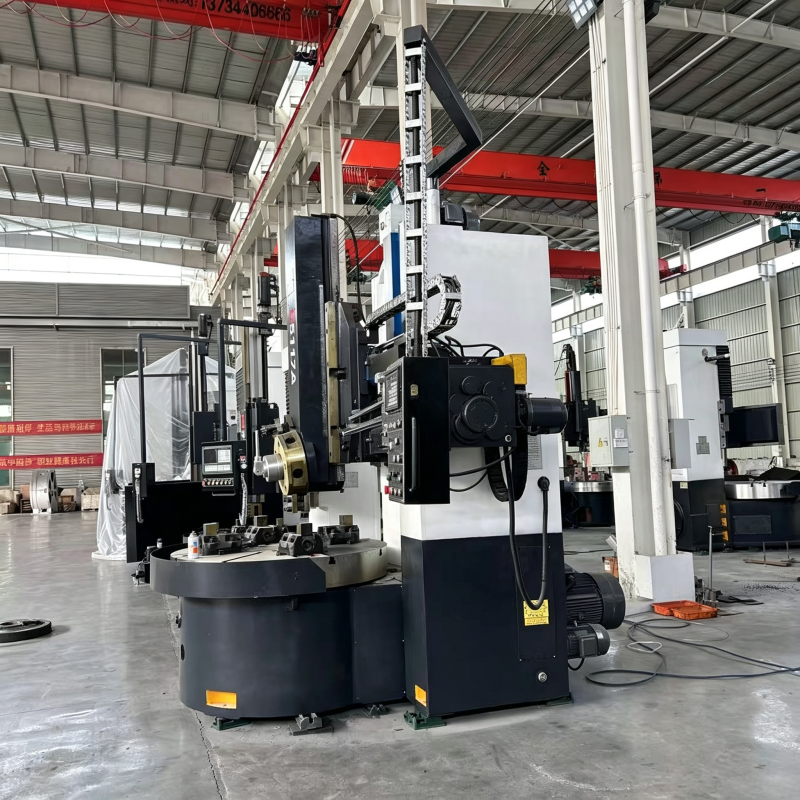

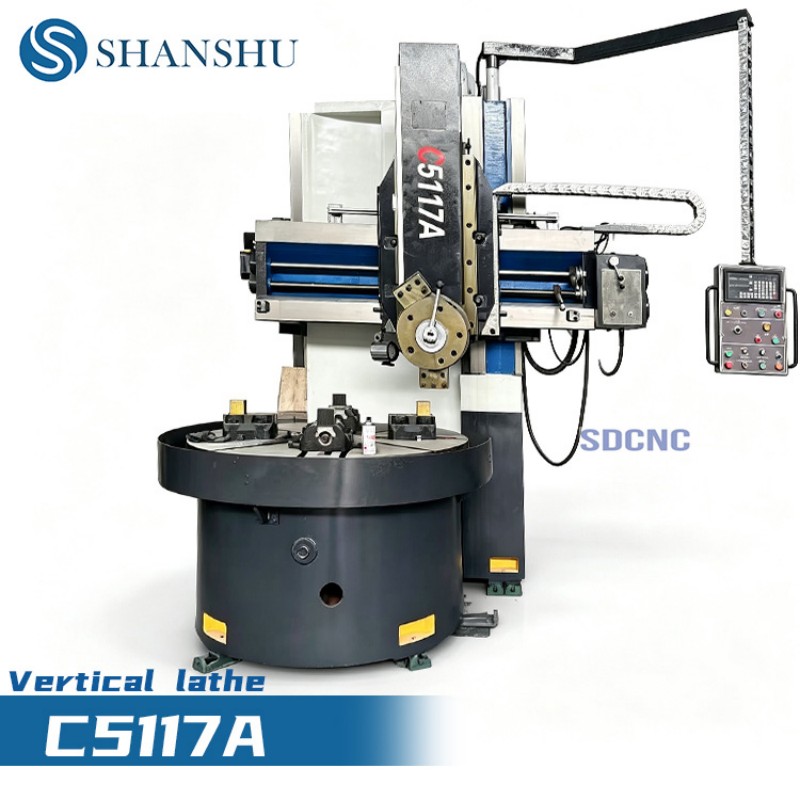

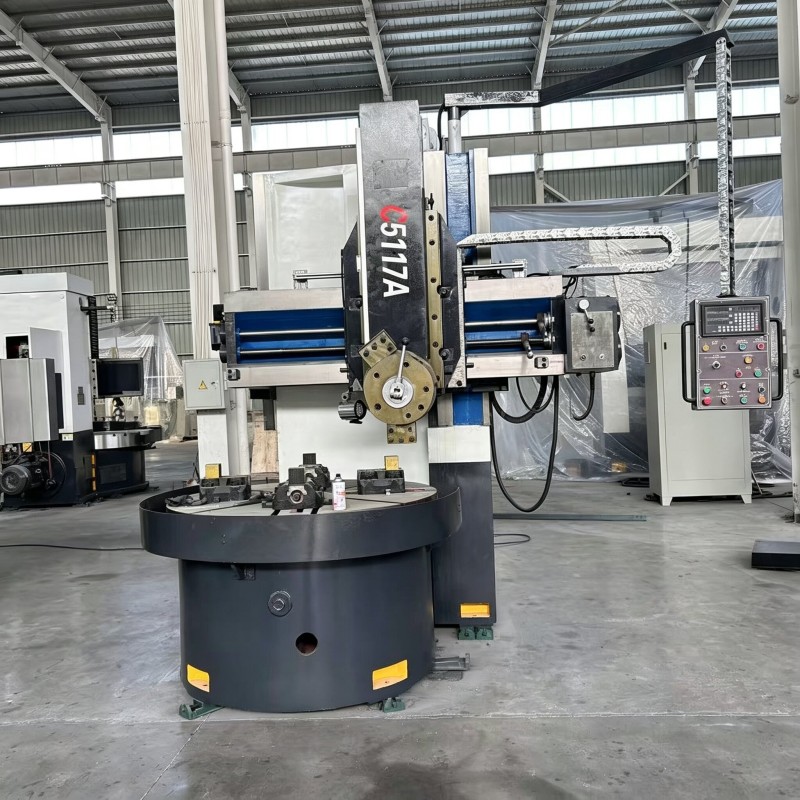

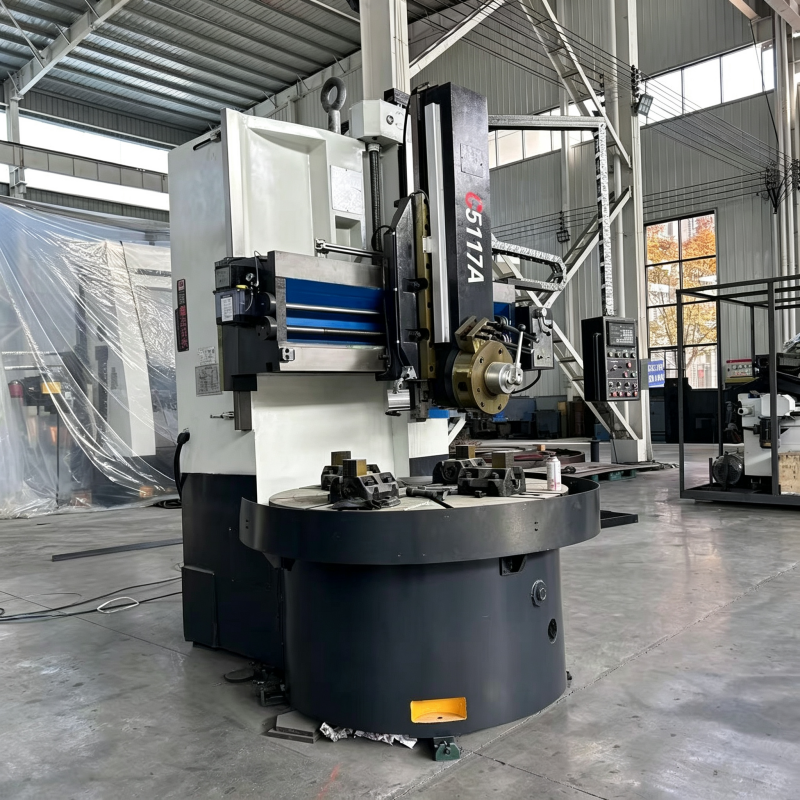

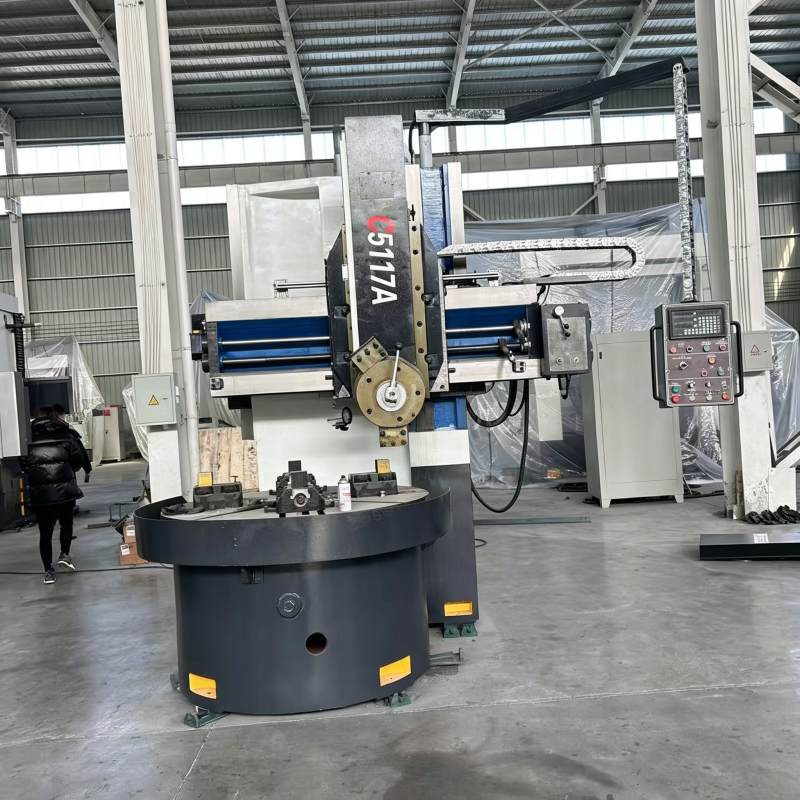

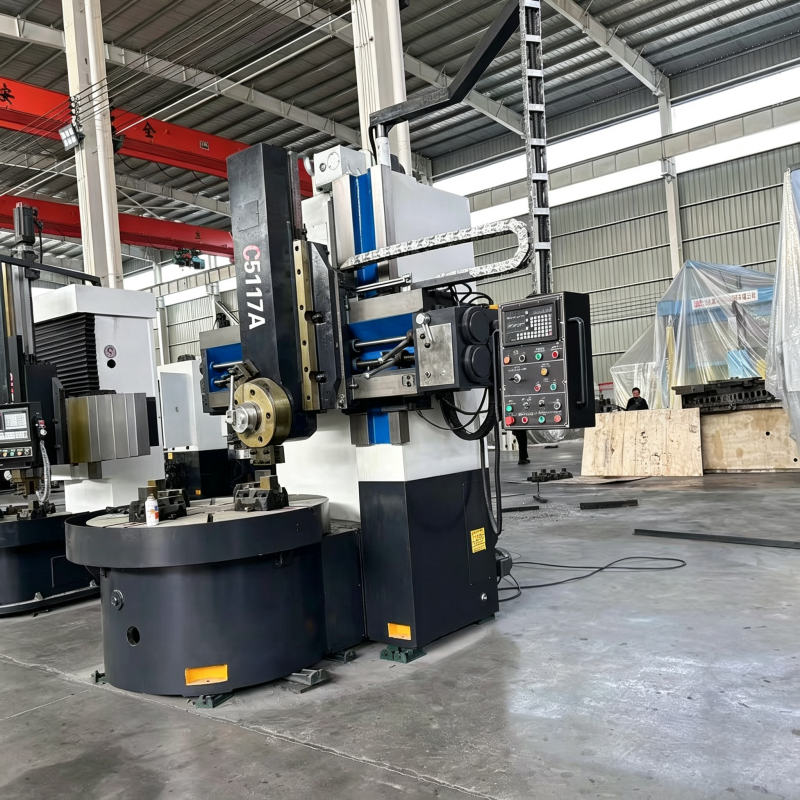

C5117 Vertical Lathe Heavy Duty Vertical Turning Machine

C5117 vertical lathe is a heavy-duty vertical turning machine for machining large-diameter disc and shell workpieces. Its maximum turning diameter reaches 1700mm. The machine adopts solid cast frame, high rigidity and strong cutting capacity. It can finish turning of outer circle, inner hole, end face, groove and taper surface. Both conventional and CNC types are optional. Widely used in mining, petroleum, engineering machinery and valve industry.

Quantity:
Availability:





Inquire Add to Basket

Model:
C5117
Brand:
SDCNC

C5117 vertical lathe vertical turning machine Heavy Duty Lathe cnc vertical lathe

Product Description

Specification	Unit	C5117A
Table diameter	mm	1400
Max. turning diameter	mm	1700
Max. height of workpiece	mm	1000
Max. weight of workpiece	T	5
Tool section size	mm	40x40
Max. Cutting force of vertical tool post	N	25000
Max.torque of table	N·m	25000
Table speed steps		16
Table speed range	r/min	5-160
Vertical tool post feed range		12
Vertical tool post feed steps	Mm/min	0.8-86
of vertical tool post(horizontal)	mm	915
of vertical tool post(vertical)	mm	800
Swivel angle of vertical tool post	°	±30°
Side tool post travel(horizontal)	mm	630
Side tool post travel(vertical)	mm	900
Tool post rapid traverse	mm/min	1800
of cross beam	mm	650
Cross beam lifting speed	mm/min	350
Main motor power	Kw	30
Cross beam lifting motor power	Kw	2.2
Machine weight	T	13
